Brinell Scope – ATI BR

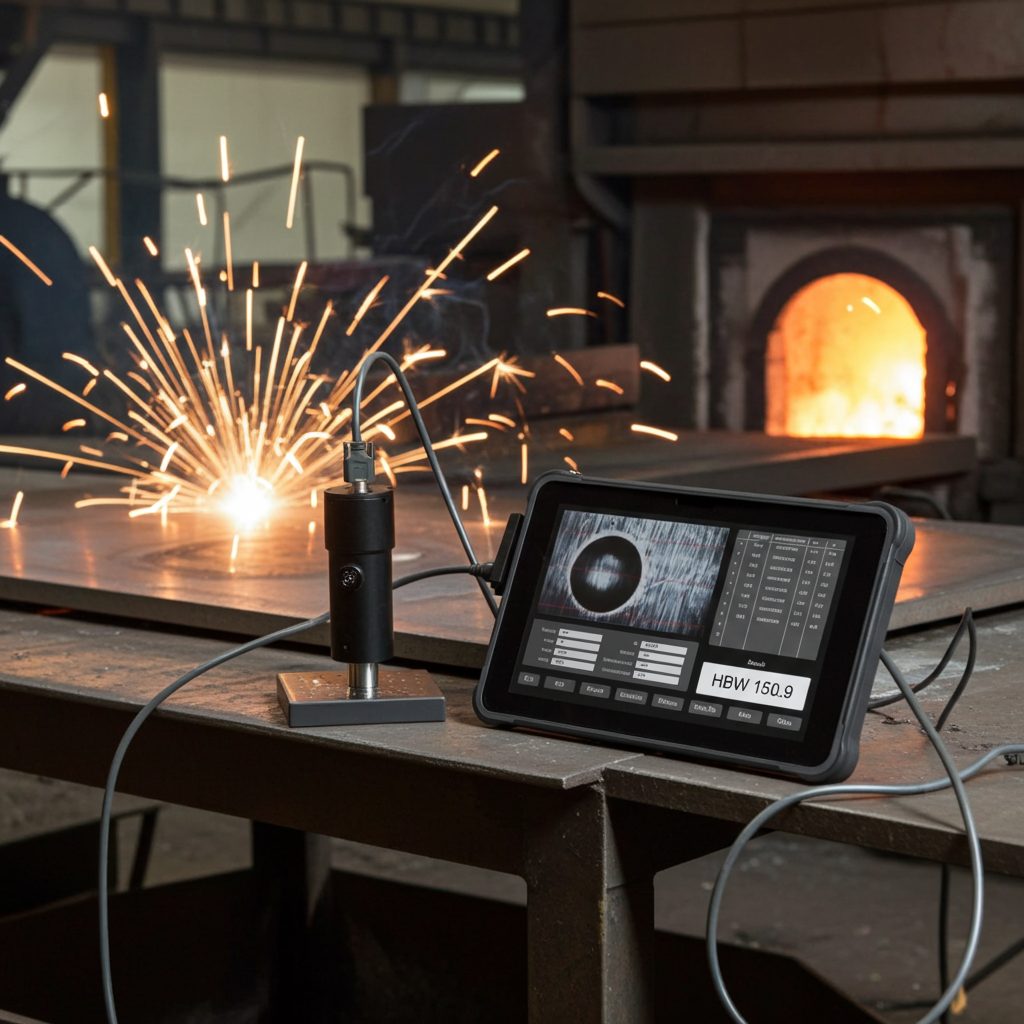

Digital Portable Brinell Microscope, engineered for robust performance in the field and in the lab. Bring precision and repeatability directly to your hardness testing zone with the ATI BR.
Automatic Brinell indentation reading conform to ASTM and ISO Hardness Testing Standards
The ATI BR Brinell Scope combines exceptional optical quality, digital imaging, and easy portability to deliver fast, accurate, and repeatable Brinell indentation measurements. Whether you’re performing on-site inspections, quality control checks, or metallurgical analysis, the ATI BR gives you the confidence of high-resolution capture and seamless integration with hardness testers.
📌 Brinell Scope – Key Features
- High-Resolution Digital Imaging: High-definition digital camera and precision optics for clear, accurate Brinell indentation measurement and reliable hardness evaluation.
- Portable & Lightweight Design: Compact, ergonomic, and easy to transport. Perfect for on-site Brinell testing, field inspections, and limited workspaces.
- User-Friendly Interface: Intuitive controls and live viewing for fast focusing, simple image capture, and efficient operation by any operator.
- Seamless Data Integration: Easy connection to PC and software platforms for data analysis, hardness reports, result storage, and full traceability.
- Durable Industrial Construction: Robust mechanical design engineered for harsh industrial environments and long-term reliability.
- Rugged Windows Tablet: IP68 shock- and water-resistant tablet with Intel® Core™ i5 CPU and Windows 11 for stable performance in industrial and on-site conditions.
🔍 Why Choose the Brinell Scope ATI BR?
- Field-Ready Performance: Perform accurate Brinell indentation measurements directly on site without compromising image resolution or measurement accuracy.
- Accurate Digital Documentation: Capture, store, and export high-quality Brinell indentation images for test reports, quality records, and full traceability.
- Fast Setup & Operation: Quick setup and intuitive operation reduce adjustment time and increase inspection efficiency.
- Versatile Compatibility: Compatible with a wide range of Brinell hardness testers and analysis software for flexible integration into existing workflows.
Measurable Hardness Test Scales
| Brinell Hardness Scales HBW: | 1/1, 1/1.25, 1/2.5, 1/5, 1/10, 1/30 2.5/6.25, 2.5/15.62, 2.5/31.25, 2.5/62.5, 2.5/187.5 5/25, 5/31.25, 5/62.5, 5/125, 5/250 |
| Vickers Hardness Scales (Optional): | HV3, HV5, HV10, HV20, HV30, HV50, HV100 |
Mechanical & Technical Specifications:
| Objective: | 20x |
| Camera: | High resolution |
| Reading: | Automatic and Manual |
| PC OS: | Windows 11 |
| Power Supply: | USB |
