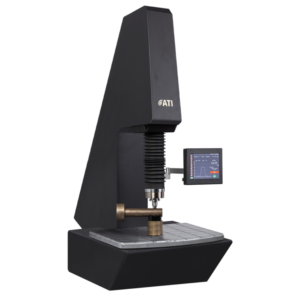

Automatic Rockwell hardness tester with built-in image viewing.
Automatic Rockwell hardness tester with built-in image viewing. ATI IN is represents the ideal solution, the indenter has been specifically designed to reach deep cavities. This allows you to measure hardness on parts that cannot be measured with a traditional hardness tester.
ATI IN is the solution for hardness tests on components such as rings and tubes (with a minimum internal test diameter of 25 mm) or near flanges or shoulders. The new structure of the indenter allows a direct view of the test point.
A single START button to start the entire test cycle: when the indenter comes into contact with the surface to be tested, the hardness test phases will begin in automatic succession without interruptions. Preload and load are managed electronically in “Closed-Loop” combined with an electronic load cell system. Each step of the test cycle appears automatically on the touch screen display built into the body of the hardness tester. The measurement software is intelligent and easy to use: select the hardness scale, the force value is automatically changed according to the preset test parameters
| Model: | ATI IN |
| Compliance standards: | ISO 6508, ASTM E18, BSEN 6508, GB/T230 |
| Rockwell initial test force: | 3 – 10 kg (29.4 N – 98.07 N) |
| 60 – 100 – 150 kgf (588 – 80 – 1471 N) | |
| Superficial Rockwell total test force: | 15 – 30 -5 kgf (147.1 – 249.2 – 41.3 N) |
| Rockwell hardness scale: | HRA ,HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
| Superficial Rockwell hardness scale: | 15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T, 45W, 45W, 45X, 45Y |
| Rockwell measurement range: | HRA: 20 – 88, HRB: 20 – 100, HRC: 20 – 70, HRD: 40 – 77, HRE: 70 – 100, HRF: 60 – 100, HRG: 30 – 94, HRH: 80 – 100, HRK: 40 – 100, HRL: 100 – 120, HRM: 85 – 115, HRR: 114 – 125 |
| Superficial Rockwell measurement range: | HR15N: 70 – 94 , HR30N: 42 – 86 , HR45N: 20 – 77 , HR15T: 67 – 93 , HR30T: 29 – 82 , HR45T: 1 – 72 |
| Force control system: | Electronic control of load cells in “Closed-Loop” |
| Dwell time: | 1-99 seconds |
| Hardness resolution: | 0.1 HR |
| Force error: | <1.0% |
| Height capacity: | 300 mm |
| Depth capacity: | 250 mm |
| Minimum inner diameter: | 25 mm |
| Power supply: | 200V / 200VA , 50~60 Hz > |
| Total dimensions: | 720 x 260 x 840 mm |
RELATED HARDNESS TESTERS

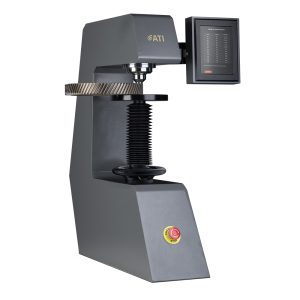

DAKOMASTER 300
Fully automatic hardness testing machine with test loads from 1 to 250 kgf. Rockwell, Superficial Rockwell and Brinell HBWT. Touchscreen PC and high level software.
See more

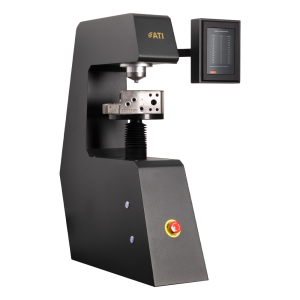

DRM / EX / RT
