Hardness Testing Academy
Technical guides, standards and practical knowledge for Rockwell, Brinell, Vickers and Knoop hardness testing.
The ATI Hardness Testing Academy is your complete reference for hardness testing: what hardness testing is, how each hardness testing method works, how to choose the right one, and the ISO and ASTM standards behind every measurement. Hardness testing measures a material’s resistance to permanent indentation and is one of the most widely used mechanical tests in industry, because hardness correlates with strength, wear resistance and heat-treatment quality. Here you will find practical hardness testing guides, in-depth standards references, hardness conversion, and the accredited calibration and certified test blocks that keep your hardness testing results traceable.
Table of contents
Page scope
The ATI Hardness Testing Academy is a structured collection of technical articles on hardness testing, covering Rockwell, Brinell, Vickers, Knoop and related testing principles in accordance with ASTM and ISO standards. For each method you get a practical hardness testing guide and a deeper, standards-focused reference, all cross-linked so you can move from a quick answer to the underlying metrology in one click. Whether you work in production quality control, in a metrology laboratory or in research and development, this is the starting point for hardness testing know-how.
Fundamentals of hardness testing
Hardness is not a fundamental physical property but a measure of how a material resists permanent indentation. In a hardness testing process, an indenter of defined geometry (a diamond cone, a hardened ball or a diamond pyramid) is pressed into the surface under a known force, and the hardness value is derived from the depth of penetration or the size of the residual indentation. Higher numbers mean harder materials. Start here with the two foundations, the practical overview and the underlying physics:
General guide to hardness testing
A broad introduction to hardness testing methods, applications and standards: what each method measures, when to use it and how the results compare.
The physics of hardness
The mechanics behind every method: indentation, depth versus area readings, elastic recovery and the elastic modulus, and how hardness relates to tensile strength and plasticity.
Hardness testing methods: practical guides and theory
Each hardness testing method suits different materials and goals. For every method you have a practical guide, an in-depth standards reference, and quick links to the questions users search most:
Rockwell hardness testing
Depth-based, fast and direct: the most widely used method for production quality control of metals (HRC, HRBW).
Brinell hardness testing
Large ball indentation, ideal for castings, forgings and coarse or inhomogeneous metals. Heavy testing loads.
Vickers & Knoop hardness testing

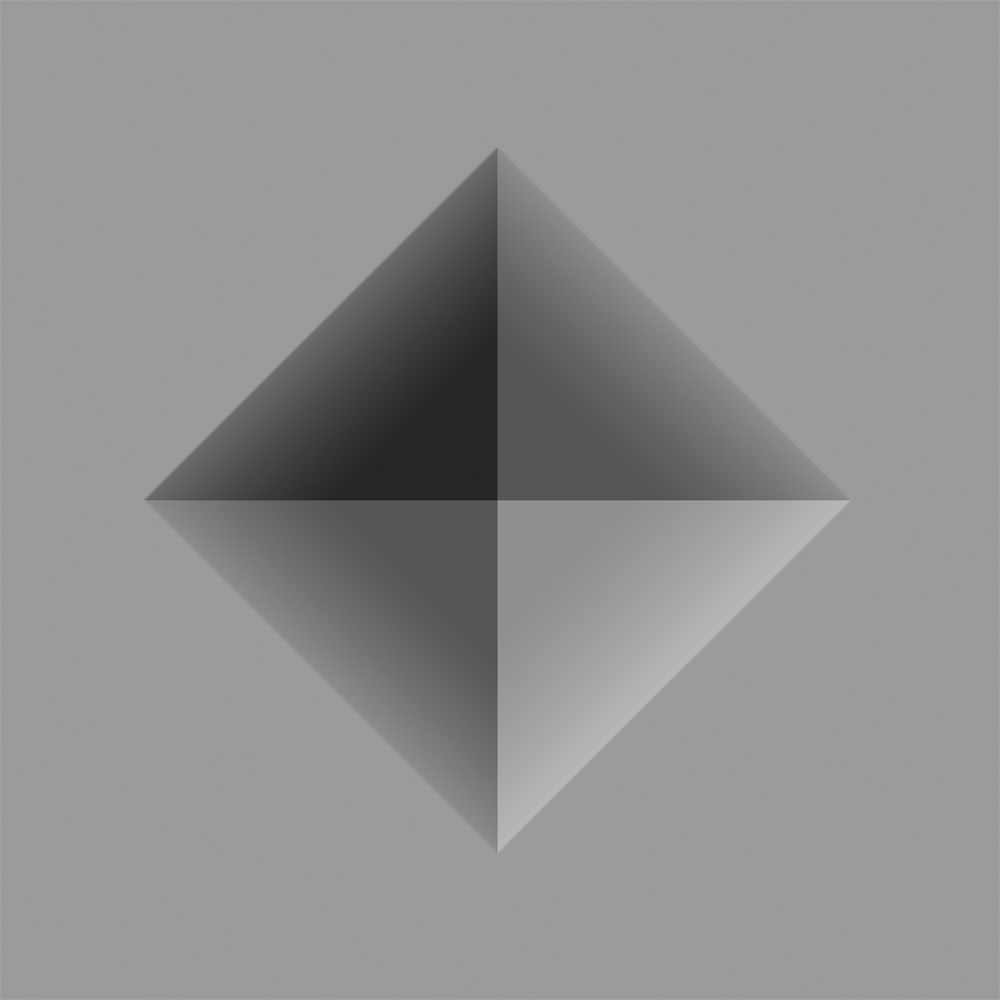

Diamond pyramid with one continuous scale, from soft metals to hard coatings, thin layers and microhardness.
How to choose the right hardness testing method
| If you need to test… | Best method |
|---|---|
| Hardened steel, fast QC on finished parts | Rockwell (HRC) |
| Castings, forgings, coarse or inhomogeneous metals | Brinell (HBW) |
| Thin parts, coatings, welds, case depth, single phases | Vickers / microhardness (HV) |
| Thin coatings, brittle materials, near edges | Knoop (HK) |
| Large or in-service parts that cannot be moved | Portable hardness testing |
| Rubber, plastics and elastomers | Shore / IRHD |
For a detailed comparison of the three main methods, read Rockwell vs Brinell vs Vickers.
Specialized hardness testing topics
Case depth (CHD)
How to measure the depth of carburized, nitrided and induction-hardened layers by Vickers microhardness traverse.
Weld hardness testing
How to survey parent metal, HAZ and weld hardness in accordance with ISO 9015 and ISO 15614.
Hardness conversion
How to convert HV, HRC, HBW and HRB hardness values in accordance with ISO 18265 and ASTM E140.
Rapid Brinell (HBWT, ASTM E103)
A fast, depth reading Brinell method for high volume checks, and why its calibration is material dependent.
Universal hardness testing
When one machine runs Rockwell, Brinell and Vickers, and where a dedicated tester is the better choice.
Portable hardness testing
UCI, Leeb and portable Rockwell (ASTM E3246) for large and in service parts.
Shore and IRHD (rubber and plastics)
Durometer and IRHD methods for elastomers, rubber and plastics.
Interactive calculators
Hardness from an impression, indentation depth, minimum thickness, permissible error and curved-surface corrections.
Calibration, standards and metrology
Every hardness testing method is defined by parallel ISO and ASTM standards: Rockwell ISO 6508 and ASTM E18; Brinell ISO 6506 and ASTM E10; Vickers ISO 6507 and ASTM E92, E384; hardness conversion ISO 18265 and ASTM E140. The reliability of every result depends on calibration traceable to ISO/IEC 17025.
From theory to equipment
Once you know the method, find the instrument. ATI designs and builds the full range of hardness testers and the metrology equipment around them:
- Rockwell hardness testers · Brinell · Vickers · Universal · Portable · Rubber & plastic (Shore / IRHD)
- Industrial microscopes · Metallographic sample preparation · Image analysis
- Custom and automated hardness testing solutions
Need help choosing the right article or testing solution?
Tell us what you need to test and our metrology team will help you identify the most suitable hardness testing method, standard and instrument for your application.
Talk to our hardness testing specialists.
Author & technical responsibility
Frequently asked questions
Which hardness testing method should I use?
It depends on the material, part size and what you must control: Rockwell for fast QC of finished steel, Brinell for coarse or large parts, Vickers and Knoop for thin layers, coatings and welds. See the method guides above.
How are hardness values converted between scales?
Approximately, for specific material groups, in accordance with ISO 18265 and ASTM E140. Conversions are estimates and do not replace a direct measurement on the required scale. See the hardness conversion table.
How often should a hardness tester be verified?
Verify with a certified test block at least daily before use, after changing indenter or anvil, and whenever results are in doubt; full calibration follows the applicable standard and your quality system.
Are ATI hardness testing calibrations accredited?
Yes. ATI operates an ISO/IEC 17025 accredited calibration laboratory (ANAB, AC 3026.01) recognized under the ILAC-MRA, providing internationally recognized, traceable calibration and certified reference blocks.
