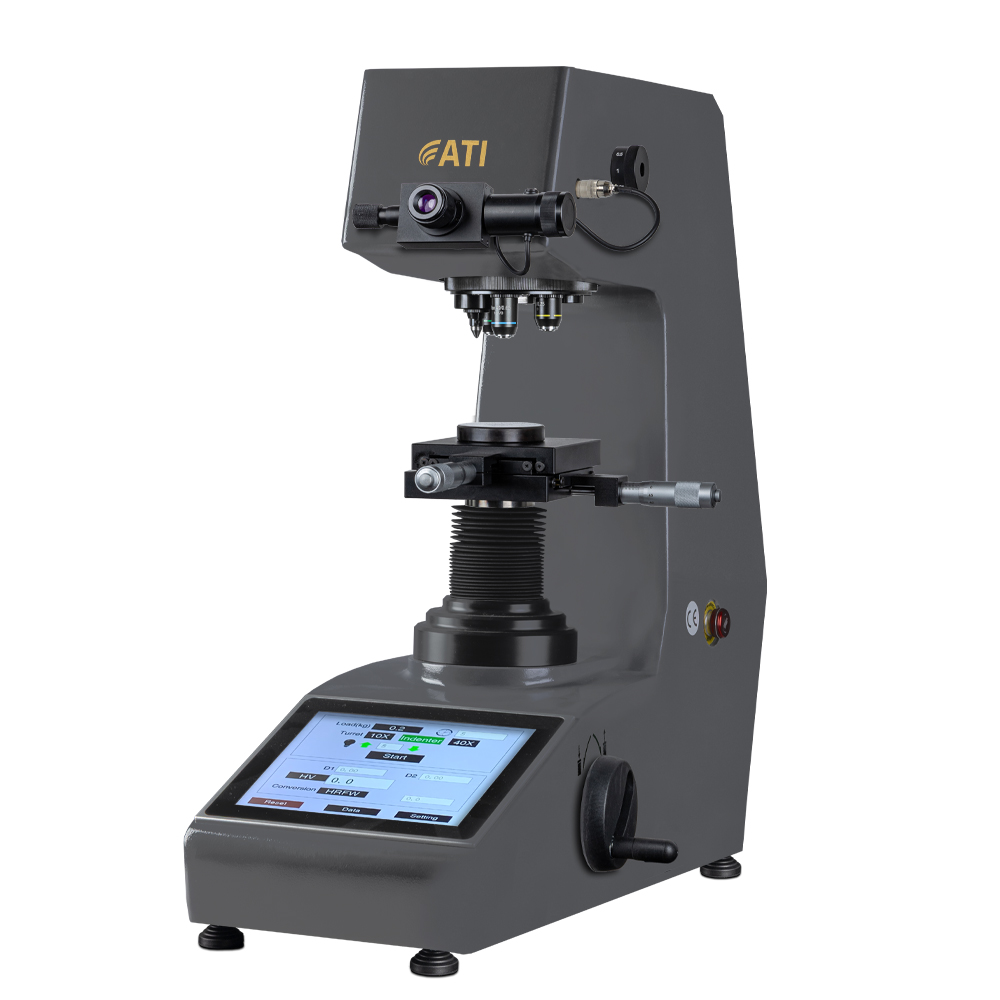

ATI DM2

Micro hardness tester for Vickers and micro Vickers tests with automatic turret, automatic test cycle and digital direct measurement.

Compact and Automatic Vickers Hardness Tester

Automatic 3-position turret (1 indenter and 2 objectives) with automatic selection of the objective-indenter combination. (Possibility of having a 4-position turret: 2 penetrators and 2 objectives)
The eyepiece has a wide field of view which allows for rapid and precise identification of the fingerprint with a definition of 0.0001mm.
The manual XY table allows the customer to check the correspondence between specimen and indenter. The measurement definition is of 0.01mm.

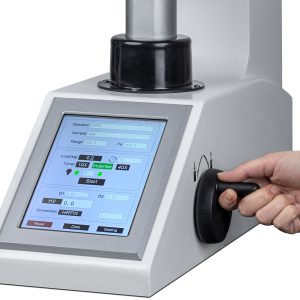

The manual knob allows you to move the elevation screw along the Z axis with extreme precision, to obtain precise focus.

CLICK HERE AND CONTACT US

ATI DM2 is Manual Vickers Hardness Tester is designed for precise and reliable hardness testing, offering a high level of accuracy and ease of use. The tester features a manual eyepiece with a wide field of view, enabling quick and precise identification of the indentation impression. It allows for measurement accuracy down to 0.0001mm, ensuring highly accurate readings.

Equipped with a multi position turret, the tester automatically selects the optimal combination of indenter and objective lens, with a standard 3-position turret that can be upgraded to a 4-position version for even greater versatility, including two indenters and two objective lenses. The manual X-Y stage allows for precise specimen positioning with an accuracy of 0.01mm, ensuring the test is conducted at the desired point on the sample.

For focus adjustment, the tester includes a manual focus control that provides fine tuned movement of the Z-axis through a long elevation screw, allowing the operator to achieve exact focus for optimal indentation viewing and measurement.

This Manual Vickers Hardness Tester offers a combination of high-precision features and user-friendly operation, making it the ideal solution for accurate hardness testing in various applications.

Automatic multi position turret and manual control

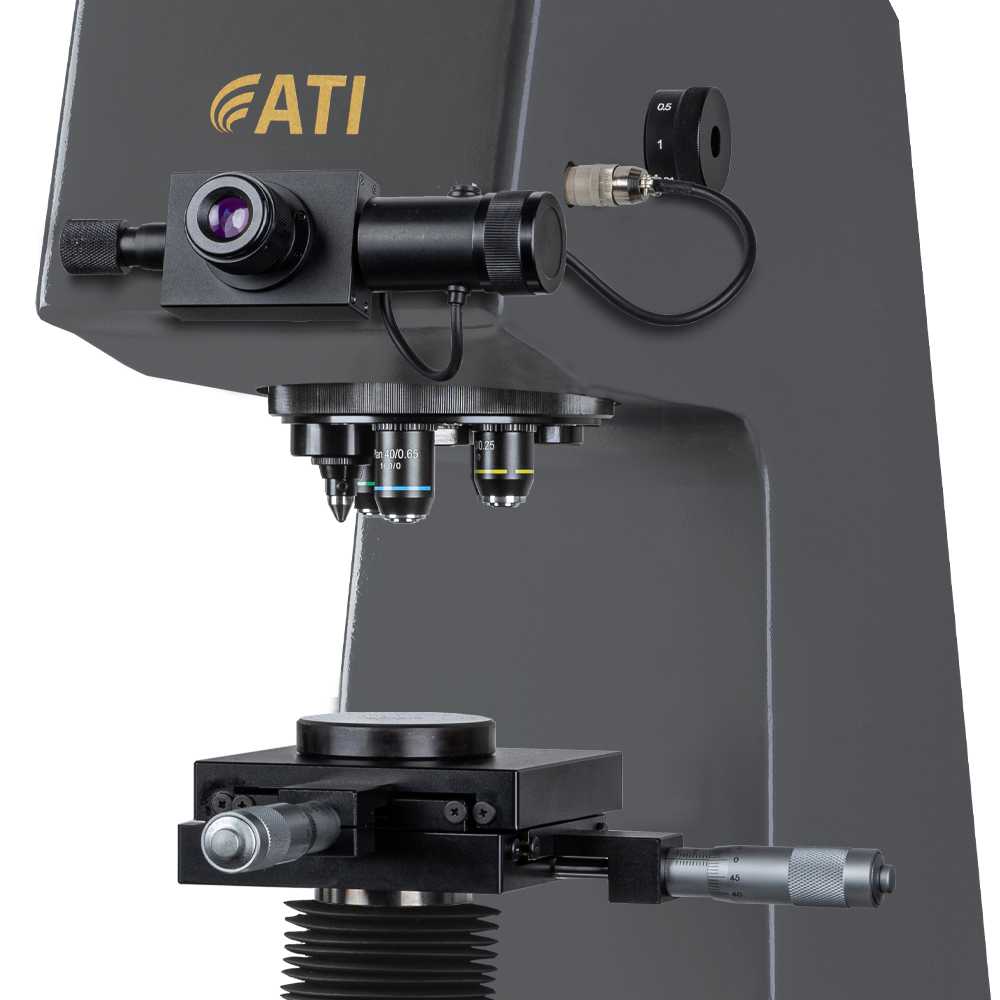

ATI DM2 is equipped with 3 position automatic turret (1 indenter and 2 objectives lens) with automatic selection of the combination between objectives and indenter. (Possibility of having 45 position turret composed of 2 indenters and 2 objective lens).

ATI DM2 has manual X-Y table which allows the customer to move the specimen to the desired testing point with an accuracy of 0.01 mm.

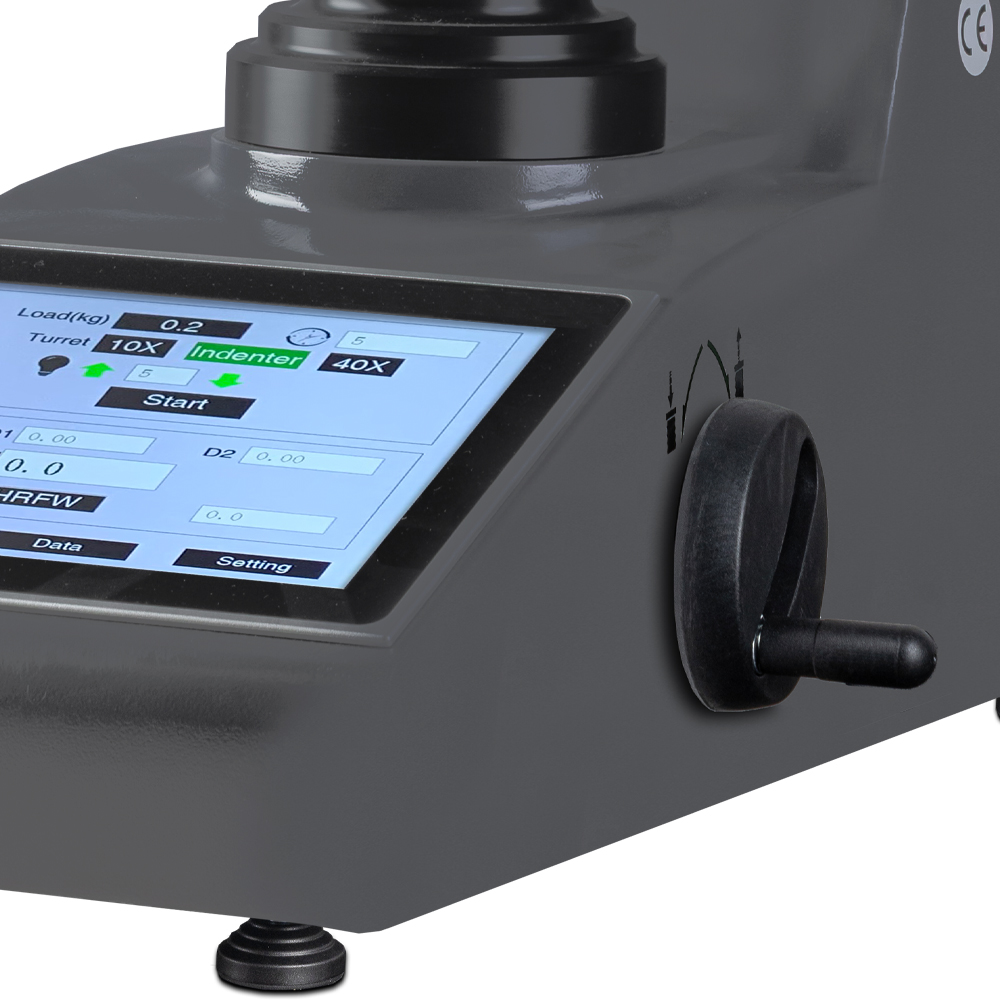

The manual knob allow you to move the long elevation screw with extreme precision the Z axis.

The manual eyepiece has a wide field of view that allows rapid and precise identification of the impression and measurement with an accuracy of 0.0001 mm.

Software

The ATIV DM2 hardness tester is equipped with software designed to be used by operators of any level of training. The LCD control panel it is equipped with all the information necessary for use. The menu presents functional icons that do not require an instruction manual. Through the main menu it is possible to program the test cycle, check with the load force applied, check the load residence time, view the hardness value obtained, convert the results into HR, HB and HK scales, and keep the history of the results and display statistical results.

ATI DM2

ATI DM2 is micro hardness tester for Vickers and micro Vickers tests with automatic turret, automatic test cycle and digital direct measurement.

Compact and Automatic Vickers Hardness Tester

Automatic 3-position turret (1 indenter and 2 objectives) with automatic selection of the objective-indenter combination. (Possibility of having a 4-position turret: 2 penetrators and 2 objectives)
The eyepiece has a wide field of view which allows for rapid and precise identification of the fingerprint with a definition of 0.0001mm.
The manual XY table allows the customer to check the correspondence between specimen and indenter. The measurement definition is of 0.01mm.
The manual knob allows you to move the elevation screw along the Z axis with extreme precision, to obtain precise focus.

CLICK HERE AND CONTACT US

ATI DM2 is Manual Vickers Hardness Tester is designed for precise and reliable hardness testing, offering a high level of accuracy and ease of use. The tester features a manual eyepiece with a wide field of view, enabling quick and precise identification of the indentation impression. It allows for measurement accuracy down to 0.0001mm, ensuring highly accurate readings. Equipped with a multi position turret, the tester automatically selects the optimal combination of indenter and objective lens, with a standard 3-position turret that can be upgraded to a 4-position version for even greater versatility, including two indenters and two objective lenses. The manual X-Y stage allows for precise specimen positioning with an accuracy of 0.01mm, ensuring the test is conducted at the desired point on the sample. For focus adjustment, the tester includes a manual focus control that provides fine tuned movement of the Z-axis through a long elevation screw, allowing the operator to achieve exact focus for optimal indentation viewing and measurement. This Manual Vickers Hardness Tester offers a combination of high-precision features and user-friendly operation, making it the ideal solution for accurate hardness testing in various applications.

Automatic multi position turret and manual control

ATI DM2 is equipped with 3 position automatic turret (1 indenter and 2 objectives lens) with automatic selection of the combination between objectives and indenter. (Possibility of having 45 position turret composed of 2 indenters and 2 objective lens). ATI DM2 has manual X-Y table which allows the customer to move the specimen to the desired testing point with an accuracy of 0.01 mm. The manual knob allow you to move the long elevation screw with extreme precision the Z axis. The manual eyepiece has a wide field of view that allows rapid and precise identification of the impression and measurement with an accuracy of 0.0001 mm.

Software

The ATIV DM2 hardness tester is equipped with software designed to be used by operators of any level of training. The LCD control panel it is equipped with all the information necessary for use. The menu presents functional icons that do not require an instruction manual. Through the main menu it is possible to program the test cycle, check with the load force applied, check the load residence time, view the hardness value obtained, convert the results into HR, HB and HK scales, and keep the history of the results and display statistical results.

Model:	ATI DM2
Compliance standards:	ASTM – E384 / ISO 6507-2 / JIS B 7734
Action:	Automatic turret, automatic loading, automatic test cycle and automatic measurement
Accuracy:	Better than 1%
Temperature Range:	Tests can be performed in environments with temperature between 10°C and 35°C
Operation Principle:	At weights
Test Loads:	0.098 – 0.245 – 0.490 N (10 – 25 – 50 – 100 – 200 – 300 – 500 – 1000 gf)
Dwell time:	1-99 seconds
Resolution:	0,001 mm
Objectives:	1X and 2X with a field of view of 8mm x 16mm
Auto-focus:	Automatic (just for ATIV AUTO)
Optical magnifications:	H20X , 40X (as optional 5X and 10X)
Height capacity:	210 mm (without XY table)
Depth capacity:	135 mm
X-Y table:	ATIV: manual table ; ATIV AUTO: motorized table ; Art. A055.0.010 travel 50x50mm, Art. A055.0.008 travel 100x100mm
Display:	11,5” UHD dislay with multicolor touch screen
Camera:	1,3 MP UHD
Data storage:	2GB
Principle of operation:	Windows 10
Data output:	USB
Power supply:	200V / 200VA , 50~60 Hz
Total dimensions:	900 x 900 x 1000h mm

RELATED HARDNESS TESTERS

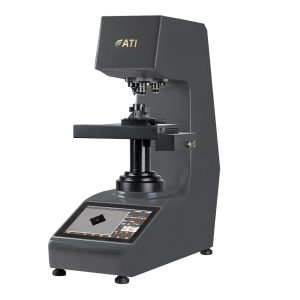

ATI V-AUTO

ATI, Vickers

ATI V-AUTO ATI V-AUTO is wireless Vickers hardness tester for Vickers and micro Vickers tests…

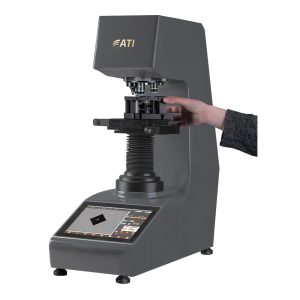

Automatic Vickers hardness tester for Vickers and micro Vickers tests
