VICKERS ATI SOFTWARE

Suitable for the retrofit of micro hardness testers

AUTOREAD SOFTWARE

ATI SOFTWARE, WHAT IS IT?

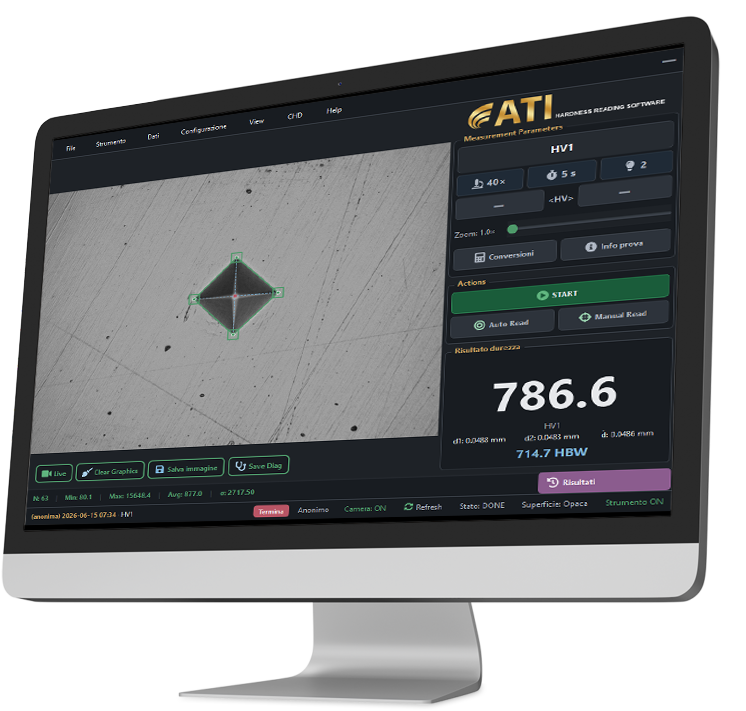

ATI SOFTWARE is an advanced hardness testing solution developed by ATI to fully automate the Vickers testing process. Designed to simplify the operator’s work while ensuring maximum measurement accuracy, the software combines automatic indentation reading, intuitive operation, and complete data management in a single platform.

The software performs the entire Vickers testing cycle automatically, from test execution to indentation measurement and result generation. Thanks to the integrated digital zoom function, operators can manually verify and measure indentations with exceptional precision while keeping the image perfectly focused at all times. Each test can be enriched with notes, comments, operator information, and specimen details, ensuring complete traceability and reliable documentation of every measurement.

WHAT’S INSIDE THE BOX?

What’s inside the retrofit kit Vickers software? The software will be provided along with a special wood box, the camera, the mounting kit, the USB 3 cable, the installation UBS and the license.
The software can be pre-installed and supplied along with the PC (desktop or laptop).

Black USB 3.0 cable with blue connector, coiled and ready for use with compatible devices for fast data transfer.

Black threaded adaptor with textured grip for camera or telescope lens attachment.

WHY CHOOSE ATI SOFTWARE?

ATI SOFTWARE has been developed to improve productivity, reduce operator influence, and guarantee repeatable hardness measurements.

ADVANTAGES

Fully automatic Vickers hardness testing cycle
Automatic indentation measurement with immediate result display

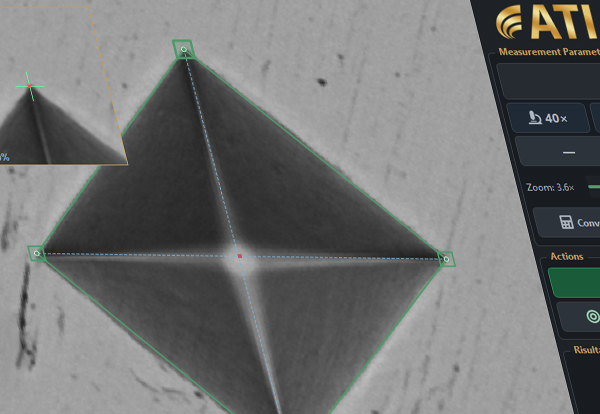

High-precision manual measurement with digital zoom
Intuitive user interface requiring minimal operator training
Maximum accuracy and repeatability
Complete database management for all tests and measurement sessions
Customizable operator, specimen, and test information
Statistical reports with graphs and measurement data
Export reports in PDF, Excel, CSV and Word formats
Full compatibility with MES, ERP and industrial automation systems

ATI SOFTWARE, WHAT IS IT?

ATI SOFTWARE is an advanced hardness testing solution developed by ATI to fully automate the Vickers testing process. Designed to simplify the operator’s work while ensuring maximum measurement accuracy, the software combines automatic indentation reading, intuitive operation, and complete data management in a single platform.

The software performs the entire Vickers testing cycle automatically, from test execution to indentation measurement and result generation. Thanks to the integrated digital zoom function, operators can manually verify and measure indentations with exceptional precision while keeping the image perfectly focused at all times. Each test can be enriched with notes, comments, operator information, and specimen details, ensuring complete traceability and reliable documentation of every measurement.

WHAT’S INSIDE THE BOX?

What’s inside the retrofit kit Vickers software? The software will be provided along with a special wood box, the camera, the mounting kit, the USB 3 cable, the installation UBS and the license.
The software can be pre-installed and supplied along with the PC (desktop or laptop).

ADVANTAGES

Fully automatic Vickers hardness testing cycle
Automatic indentation measurement with immediate result display
High-precision manual measurement with digital zoom
Intuitive user interface requiring minimal operator training
Maximum accuracy and repeatability
Complete database management for all tests and measurement sessions
Customizable operator, specimen, and test information
Statistical reports with graphs and measurement data
Export reports in PDF, Excel, CSV and Word formats
Full compatibility with MES, ERP and industrial automation systems

UPGRADE YOUR EXISTING VICKERS HARDNESS TESTER

The software can be easily installed on most existing Vickers hardness testers, transforming conventional systems into modern, fully digital testing stations. It is compatible with both manual and motorized XY stages, providing a flexible solution for laboratories and production environments with different levels of automation. ATI SOFTWARE runs on Microsoft Windows 11 and can be integrated into both new installations and retrofit projects, extending the life of existing equipment while significantly improving productivity and measurement accuracy.

CONTACT US FOR A FREE DEMOSTRATION

COMPLETE DATA MANAGEMENT

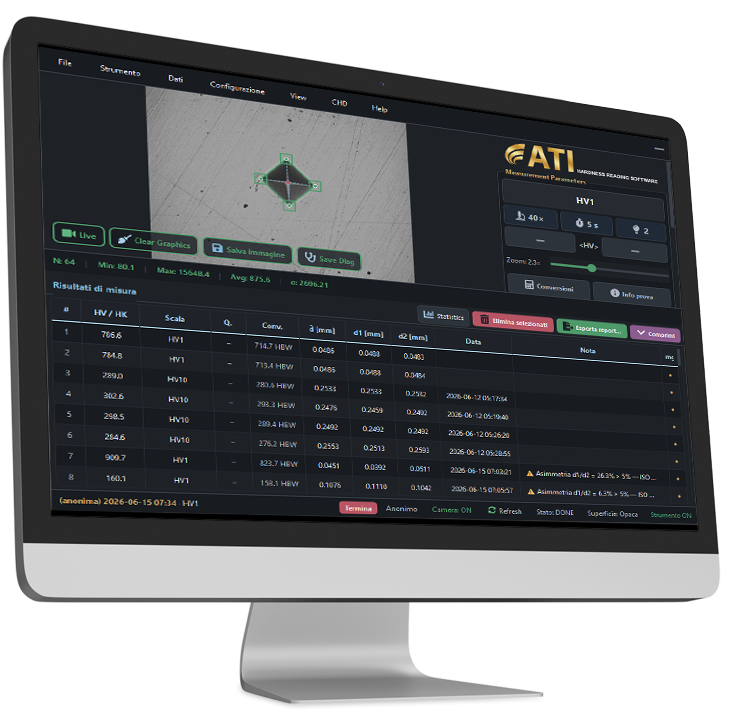

Every measurement is automatically stored in a dedicated database together with operator information, specimen identification, testing parameters, comments, and measurement results. This ensures complete traceability and simplifies quality documentation.

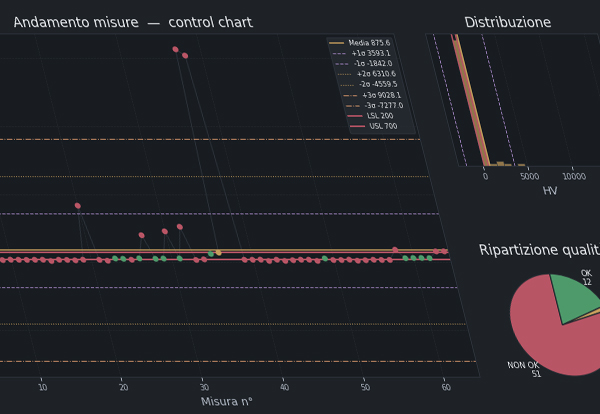

Statistical test report generated at the end of the measurement cycle, with export options in PDF, Excel, CSV, and Word formats

The software supports bidirectional communication with MES, ERP, and industrial automation systems, allowing seamless integration into Industry 4.0 manufacturing environments.

CONTACT US FOR A FREE DEMOSTRATION

MAIN FEATURES

AUTOMATIC READING

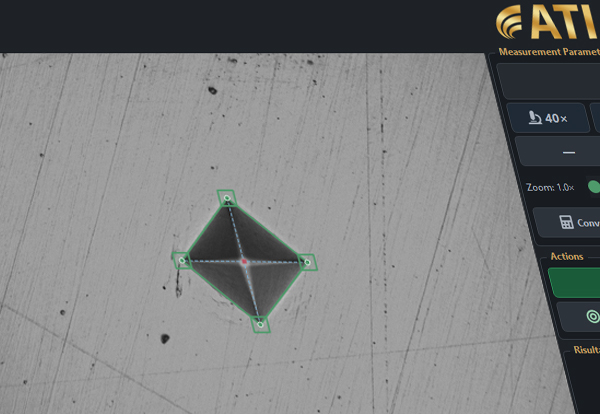

Vickers, Knoop, and Brinell measurements with the same software. The software will automatically measure indents on any surface from perfectly polished to rough & etched samples.

AUTOMATIC ILLUMINATION

Automatic light regulation on dark, opaque or polished samples. The software controls and adjusts the light and contrast to find the right combination and measure the indent. Just place the specimen and click the illumination button to see the change.

TEST REPORT

Customizable test report with client logo and information. Put as much sample information as you need, including pictures of the indents and test area. Examine results, statistics, and CHD diagram. Results can be exported also as a CSV file.

AUTOMATIC READING PRO

AUTO WELD

SOFTWARE ADD-ON

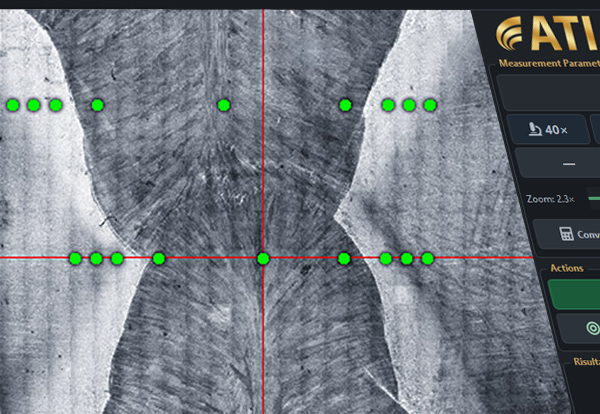

Easy testing on welded samples thanks to the predefined patterns templates and the drag positioning feature for groups of indents.

AUTO GRAIN

SOFTWARE ADD-ON

Grain Size Analysis (ASTM E112 and EN ISO 643), automatic Spheroidal Graphite Nodule Analysis (ISO 945) and utomatic Phase Percentage Analysis.

UPGRADE YOUR VICKERS HARDNESS TESTER

ATI SOFTWARE transforms your current hardness tester into a modern automatic measuring system, reducing investment costs while extending the life of your equipment.

TECHNICAL FEATURES

Available tests:	Configurable to suit your Vickers, Knoop, and Brinell testing requirements
Indentation reading:	Automatic and manual
Digital zoom	Integrated
Statistical analysis:	Standard patterns, fully customizable to meet customer requirements
Data and report output:	PDF, Excel, CSV and Word
Traceability:	Complete traceability with customizable fields, operator data, sample identification, and user-defined information
Connectivity:	MES, ERP and industrial automation
User interface:	Innovative, intuitive and operator-friendly. Data report customizable as customer needs
Operative system:	Windows 11
Camera connection:	Compatible with standard C-mount cameras
