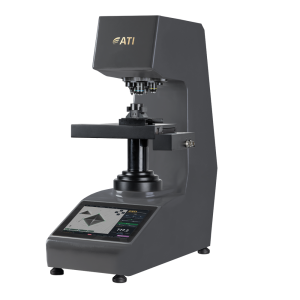

ATI V

Automatic Vickers hardness tester for Vickers and micro Vickers tests with built-in image viewing. Compact and fully automatic hardness tester in CNC system.

The Compact and Automatic Vickers Hardness Tester offers a fully automated testing process with a single START button, ensuring seamless operation without operator intervention. It features electronically controlled load forces, direct indentation imaging with both manual and automatic measurement, and a turret with 5 positions for automatic lens selection. The tester provides interactive magnification from x15 to x800, data and image storage, and the ability to generate statistical graphs and technical reports. Its 11.5” ultra HD touchscreen display, 1.3 Mp camera, and Ethernet/USB connectivity support remote control, data export, and software updates, making it ideal for laboratory and production environments.

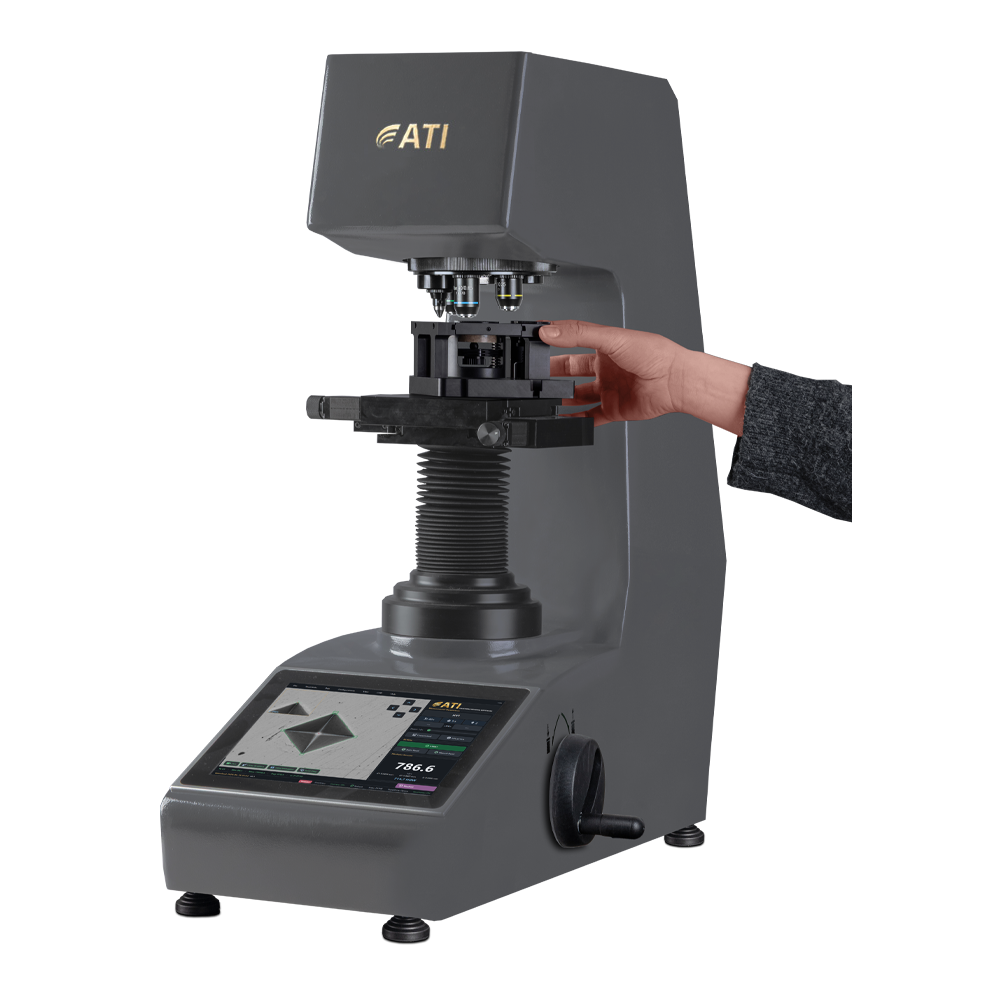

Manual X-Y Table and Auto-Turret at 5 Positions

The ATI V is a Vickers hardness tester equipped with a manual X-Y table and an auto-focus feature for multi-indentation cycles. The manual X-Y table allows the operator to move the stage personally, providing greater control and flexibility during the testing process. This ensures accurate positioning for each indentation, enhancing the reliability of your results. With its advanced features, the ATI V is the ideal choice for comprehensive Vickers hardness testing in various applications.

ATI V is equipped with a automatic turret at 5 positions with automatic selection of indenters and objective lens, depending on the selected scale.

Interactive zoom from 15x to 800x for each lens.

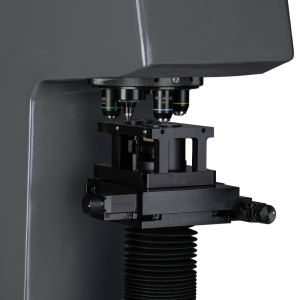

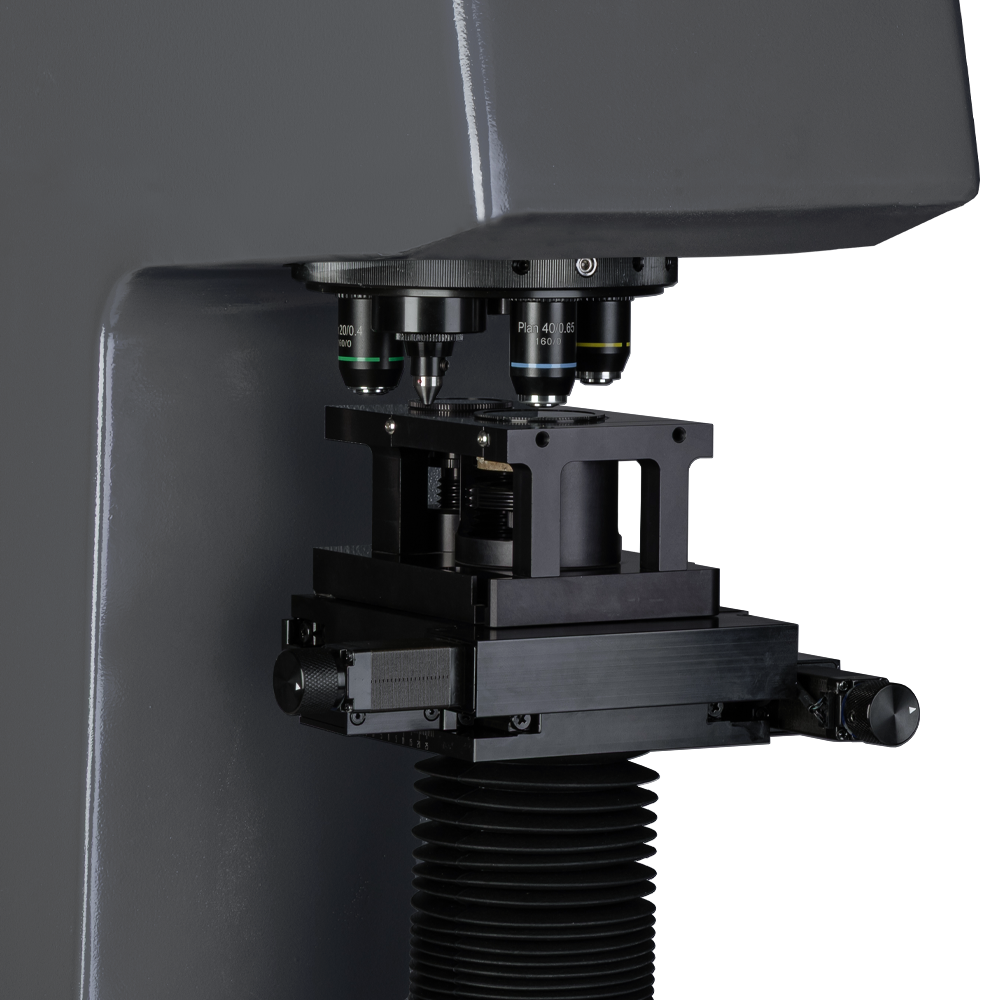

Close-up image of an advanced microscope, showcasing its multiple lenses and precision components.

Software

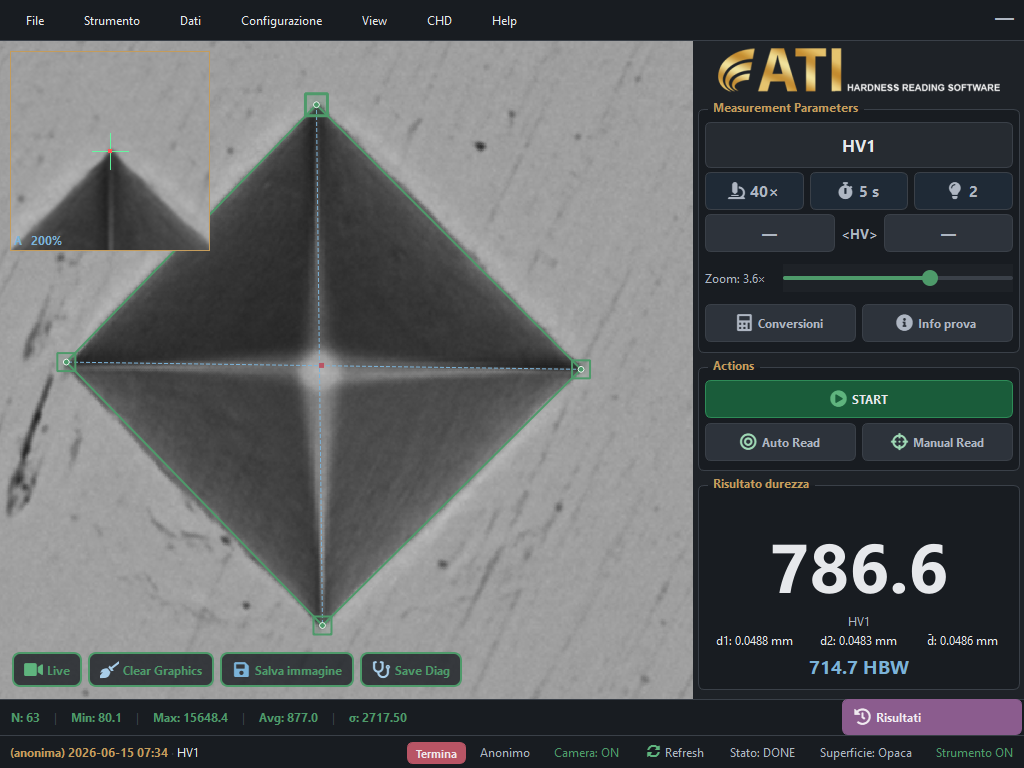

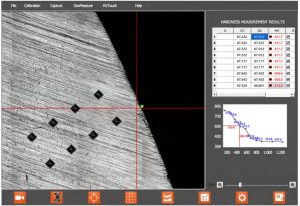

Multiple indentation paths in automatic cycle to determine the effective depth of hardness. It is possible to create patterns with the desired geometries. The CHD diagram appears directly on the display at the end of the cycle with the results.

Manual X-Y Table and Auto-Turret at 5 Positions

Software

The advanced hardness testing system is equipped with an automatic specimen scanning and multi indentation cycles. The scanning function creates a precise mapping of the specimen through automatic scanning of the sample profile and through automatic recognition of different materials that compose it (external resin and metal material). Multiple indentation paths in automatic cycle to determine the effective depth of hardness. It is possible to create patterns with the desired geometries. The CHD diagram appears directly on the display at the end of the cycle with the results.

Model:	ATI V
Compliance standards:	ISO 6507, ASTM E92 and E384
Range force ATI V1:	10 – 25 – 50 – 100 – 200 – 300 – 500 – 1000 gr (0,098 – 0.24 – 0.49 – 0.98 – 1.96 – 2.94 – 4.90 – 9.81 N)
Range force ATI V10:	25 – 50 – 100 – 200 – 300 – 500 gr – 1- 2 – 5 – 10 Kg (0.24 – 0.49 – 0.98 – 1.96 – 2.94 – 4.90 – 9.81 – 19.6 – 49.03 – 98.06 N)
Range force ATI V30:	100 – 200 – 300 – 500 gr – 1- 2 – 5 – 10 – 30 Kg (0.98 – 1.96 – 2.94 – 4.90 – 9,81 – 19.6 – 49.03 – 98.06 – 294.19 N)
Range force ATI V50:	200 – 300 – 500 gr – 1 – 2 – 5 – 10 – 30 – 50 Kg (1.96 – 2.94 – 4.90 – 9,81 – 19.6 – 49.03 – 98.06 – 294.19 – 490.33 N)
Force control system:	Electronic control of load cells in “Closed-Loop”
Dwell time:	1-99 seconds
Resolution:	0,001 mm
Motorized turret:	Up to 6 positions: 2 indenters (standard Vickers and Knoop on request) and 4 objectives (including 5X, 10X, 20X and 40X) (depending on the models)
Objectives lens:	10X, 20X and 40X are standard and 5X objective on request
Field of vision:	120X : effective field of view 400µm and minimum measuring unit 0.03µm – 40X : effective field of view 200µm and minimum measuring unit 0.02µm
Optical magnifications:	50X , 100X , 200X and 400X (depending on the models)
Height capacity:	210 mm (without XY table)
Depth capacity:	135 mm
X-Y table:	Manual table
Display:	11,5” UHD dislay with multicolor touch screen
Camera:	1,3 MP UHD
Data storage:	2GB
Principle of operation:	Windows
Data output:	USB
Power supply:	110-200V , 200VA , 50-60Hz
Total dimensions:	900 x 900 x 1000h mm
