ATI V-AUTO

Wireless and compact hardness tester for Vickers and micro Vickers tests with built-in image viewing. Fully automatic hardness tester in CNC system.

ATI V-AUTO is an Automatic Vickers, micro Vickers and Knoop Hardness Tester, engineered to meet the rigorous standards set forth by ASTM E92 and E384. This advanced testing instrument employs a high-precision load cell and Closed-Loop electronic control with a 1 KHz sampling rate, ensuring optimal accuracy and reliability. One START button to get start the entire test cycle with display of the results. Fully automatic test cycle with automatic succession of each phase without interruption. Direct image of indentation with manual or automatic measuring on-board. Turret at 5 positions with automatic selection of indenters and objective lens, depending on the selected scale. ATI V-AUTO is equipped with a motorized X-Y-Z table and auto-focus for multi indentation cycle.

.

Automatic multi positions turret

ATI V-AUTO is equipped with a motorized X-Y table and auto-focus for multi indentation cycle. ATI V-AUTO is equipped with a automatic turret at 5 positions (3 steps for objective lens and 2 steps for indenters) with automatic selection of indenters and objective lens, depending on the selected scale. Interactive zoom from 15X to 800X for each lens. ATI V-AUTO has the automatic specimen scanning function: with this function, our Vickers hardness tester creates a precise mapping of the specimen through automatic scanning of the sample profile and through automatic recognition of different materials that compose it (external resin and metal material). This is the solution in case of multiple indentation paths in automatic test cycle to determine the effective depth of hardness. It is possible to create patterns with the desired geometries.

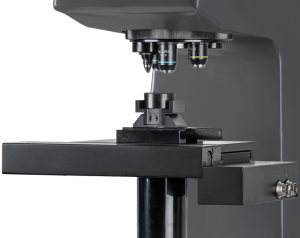

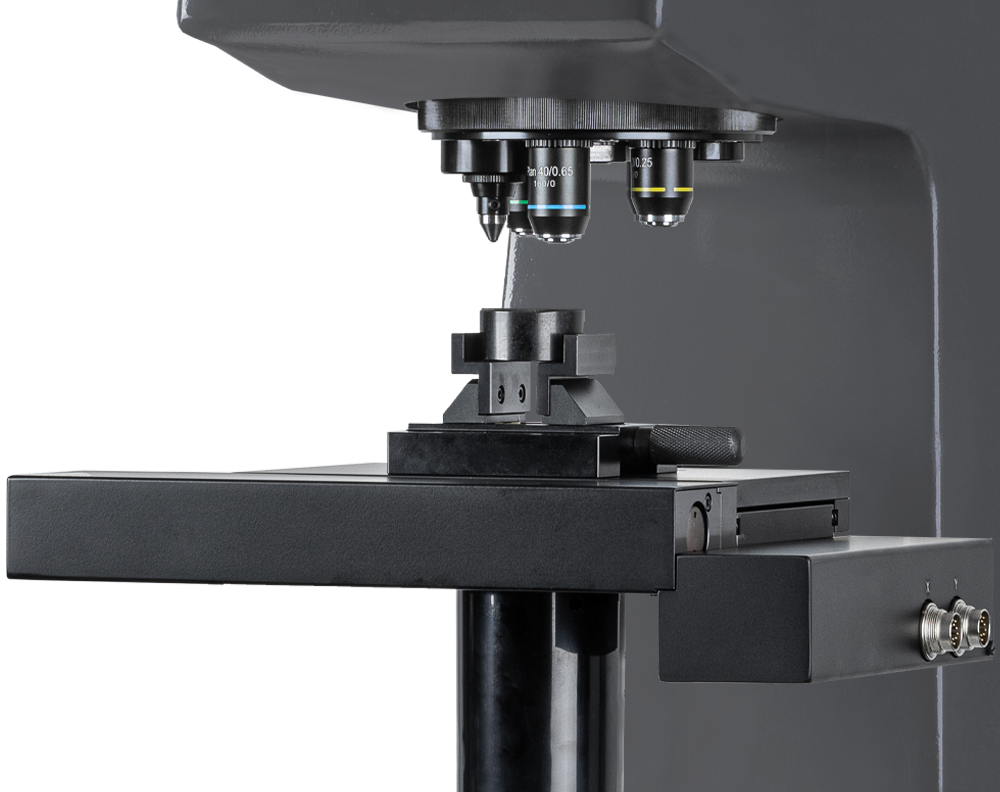

Close-up of a high-precision metallurgical microscope used for material analysis in a laboratory setting.

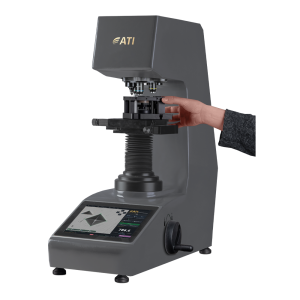

Automatic Vickers hardness tester for Vickers and micro Vickers tests

Software

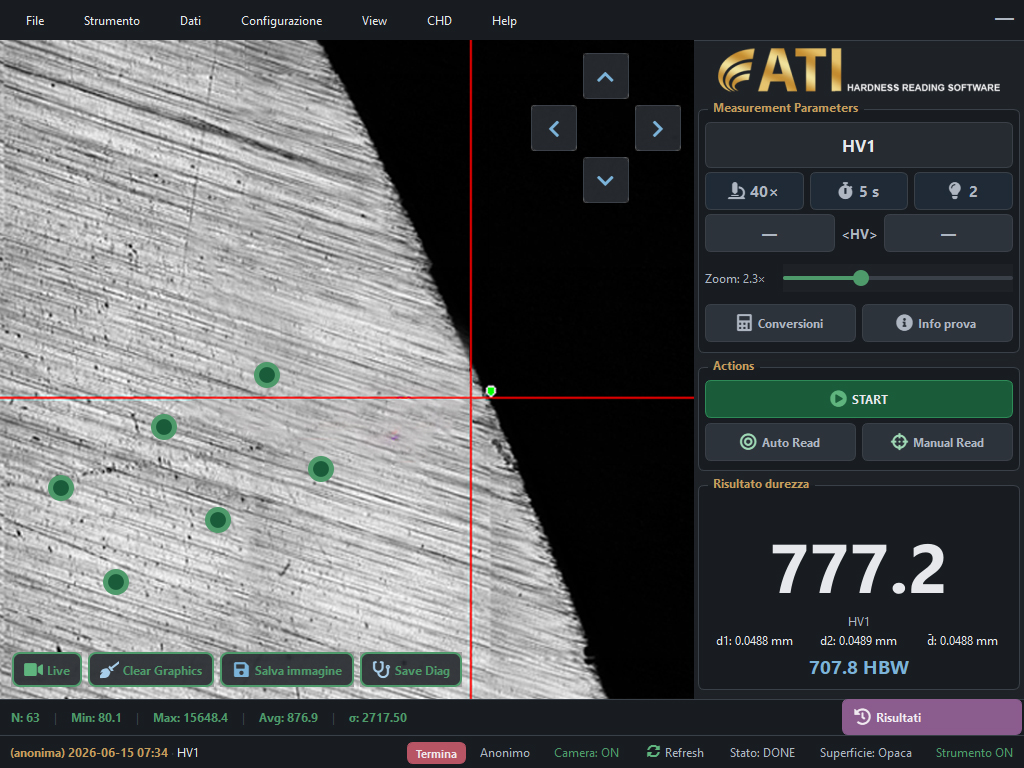

The advanced hardness testing system is equipped with an automatic specimen scanning and multi indentation cycles. The scanning function creates a precise mapping of the specimen through automatic scanning of the sample profile and through automatic recognition of different materials that compose it (external resin and metal material). Multiple indentation paths in automatic cycle to determine the effective depth of hardness. It is possible to create patterns with the desired geometries. The CHD diagram appears directly on the display at the end of the cycle with the results.

CONTACT US

Automatic multi positions turret

ATI V-AUTO is equipped with a motorized X-Y table and auto-focus for multi indentation cycle. ATI V-AUTO is equipped with a automatic turret at 5 positions (3 steps for objective lens and 2 steps for indenters) with automatic selection of indenters and objective lens, depending on the selected scale. Interactive zoom from 15X to 800X for each lens. ATI V-AUTO has the automatic specimen scanning function: with this function, our Vickers hardness tester creates a precise mapping of the specimen through automatic scanning of the sample profile and through automatic recognition of different materials that compose it (external resin and metal material). This is the solution in case of multiple indentation paths in automatic test cycle to determine the effective depth of hardness. It is possible to create patterns with the desired geometries.

Software

The advanced hardness testing system is equipped with an automatic specimen scanning and multi indentation cycles. The scanning function creates a precise mapping of the specimen through automatic scanning of the sample profile and through automatic recognition of different materials that compose it (external resin and metal material). Multiple indentation paths in automatic cycle to determine the effective depth of hardness. It is possible to create patterns with the desired geometries. The CHD diagram appears directly on the display at the end of the cycle with the results.

MEAN FEATURES

One START button to get start the entire test cycle with display of the result without operator intervention.
Fully automatic test cycle with automatic succession of each phase without interruption.
Load forces controlled electronically in “Closed-Loop” .
Direct image of indentation with manual or automatic measuring on-board.
Turret at 5 positions with automatic selection of lens-indenters depending on the selected scale.

Interactive magnification from x15 to x800 for each lens.
Memory for data and image storage.
Creation of statistical graphs and technical reports.
11.5” ultra HD display with touch screen and digital keyboard.
1,3 Mp camers SHD.
Software with interface Windows and 10.2 GM of memory.
Ethernet and USB connection for data export and remote control.
Remote control for self-diagnosis and software update service.
Suitable for all laboratory and production environments.

Model:	ATI V-AUTO
Compliance standards:	ISO 6507, ASTM E92 and E384
Range force ATI V1:	10 – 25 – 50 – 100 – 200 – 300 – 500 – 1000 gr (0,098 – 0.24 – 0.49 – 0.98 – 1.96 – 2.94 – 4.90 – 9.81 N)
Range force ATI V10:	25 – 50 – 100 – 200 – 300 – 500 gr – 1- 2 – 5 – 10 Kg (0.24 – 0.49 – 0.98 – 1.96 – 2.94 – 4.90 – 9.81 – 19.6 – 49.03 – 98.06 N)
Range force ATI V30:	100 – 200 – 300 – 500 gr – 1- 2 – 5 – 10 – 30 Kg (0.98 – 1.96 – 2.94 – 4.90 – 9,81 – 19.6 – 49.03 – 98.06 – 294.19 N)
Range force ATI V50:	200 – 300 – 500 gr – 1 – 2 – 5 – 10 – 30 – 50 Kg (1.96 – 2.94 – 4.90 – 9,81 – 19.6 – 49.03 – 98.06 – 294.19 – 490.33 N)
Force control system:	Electronic control of load cells in “Closed-Loop”
Dwell time:	1-99 seconds
Resolution:	0,001 mm
Motorized turret:	Up to 6 positions: 2 indenters (standard Vickers and Knoop on request) and 4 objectives (including 5X, 10X, 20X and 40X) (depending on the models)
Objectives lens:	10X, 20X and 40X are standard and 5X objective on request
Field of vision:	120X : effective field of view 400µm and minimum measuring unit 0.03µm – 40X : effective field of view 200µm and minimum measuring unit 0.02µm
Auto-focus:	Automatic (just for ATIV AUTO)
Optical magnifications:	50X , 100X , 200X and 400X (depending on the models)
Height capacity:	210 mm (without XY table)
Depth capacity:	135 mm
X-Y table:	Motorized table (just for ATIV AUTO); Art. A055.0.010 travel 50x50mm, Art. A055.0.008 travel 100x100mm
Display:	11,5” UHD dislay with multicolor touch screen
Camera:	1,3 MP UHD
Data storage:	2GB
Principle of operation:	Windows
Data output:	USB
Power supply:	110-200V , 200VA , 50-60Hz
Total dimensions:	900 x 900 x 1000h mm
